LARGE-FORMAT
3D-PLATFORM
THE FUTURE OF DIGITAL MANUFACTURING
Mobile Manufacturing with Millebot
Explore new possibilities of industrial additive manufacturing with the Millebot mobile digital-manufacturing platform. Built for maximum versatility and scalability.
Designed and built in USA
millebot, shipping container, 3d printer, large format, industrial 3d printer, florida, deep-tech, startup
100

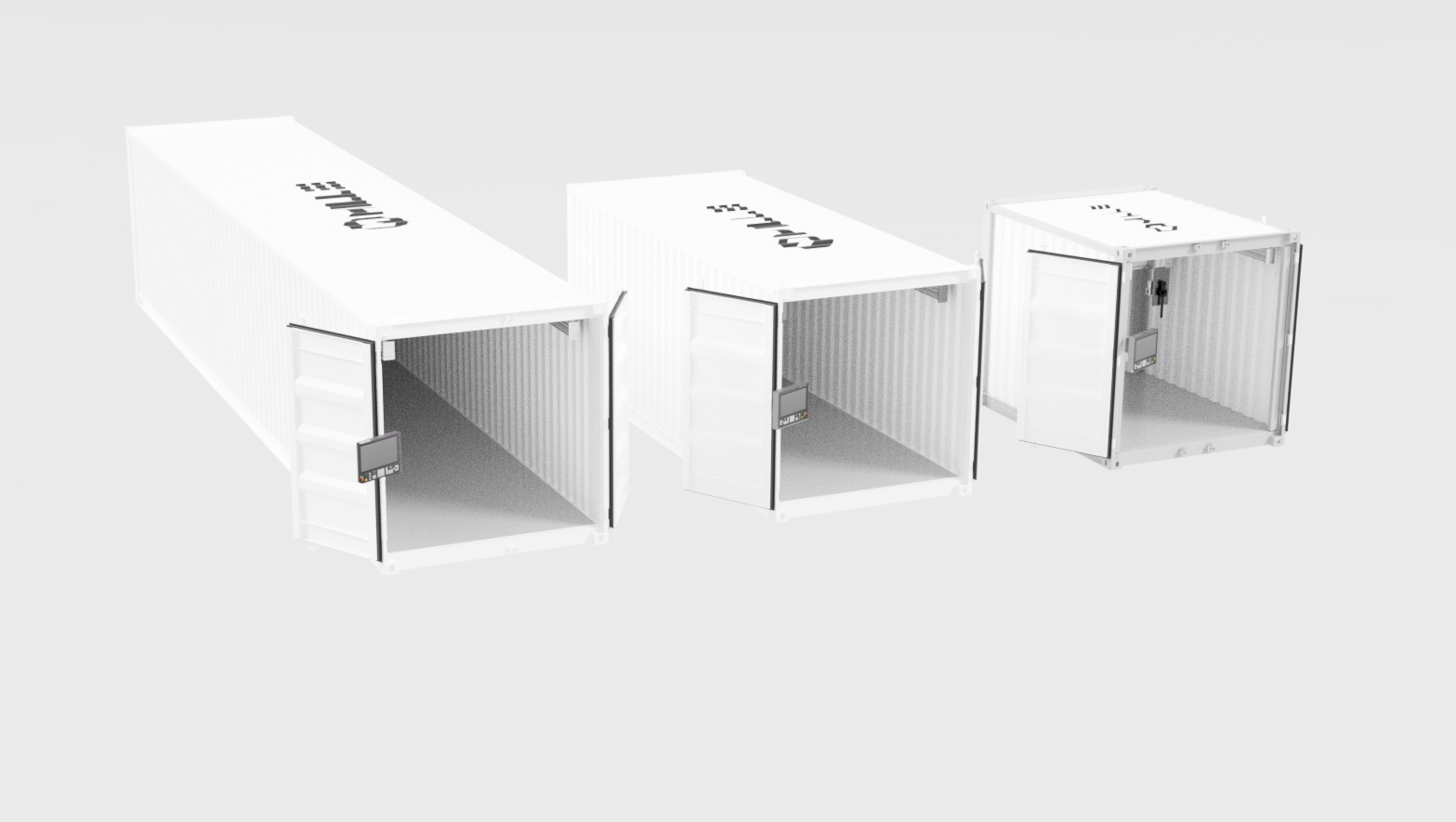

20FT Heavy-Duty Digital Manufacturing Platform
Millebot 100 industrial 3-axis machine platform is designed for large additive manufacturing in the most demanding environments.
millebot, shipping container, 3d printer, large format, industrial 3d printer, florida, deep-tech, startup
300
20FT Premium Heavy-Duty Digital Manufacturing Platform
Millebot 300 industrial 3-axis machine platform is designed greater rigidity and flexibility for large additive manufacturing and hybrid manufacturing. The Millebot 300 is ready for the most demanding environments wherever you are. Deliver on-site and operate in a matter of hours. Each machine is built to order and configured to your needs.
millebot, shipping container, 3d printer, large format, industrial 3d printer, florida, deep-tech, startup
500XL
40FT Super Heavy-Duty Digital Manufacturing Platform
Millebot 500XL industrial 3-axis machine platform is designed even greater rigidity and flexibility for large additive manufacturing and hybrid manufacturing. The 500XL is ready for the most demanding environments.
Machine Dimensions
20.0 x 8.0 x 8.5 (L,W,H)
40.0 x 8.0 x 9.5 (L,W,H)
53.0 x 8.5 x 9.5 (L,W,H)

Starting Build Volume X, Y, Z
10.0 x 5.5 x 5.5 feet*
3.0 x 1.6 x 1.6 meters*

Plastic Pellet Extruder
Plastic Pellet Extruder, <2lb/hr
Nozzles; 1mm, 2mm, 3mm, Custom

Materials
Wide Range of Pellet Plastic Materials
ABS, PLA, HIPS, PETG, more materials being tested

Max Print Temperature
Up to 450 °C

Power Requirements
240V 30A/ Single phase*

Warranty
Lifetime Customer Support
1-Year Warranty on parts and labor

*Final specifications based on final machine configuration and options
Mobile Platform
Operate indoors or outdoors with built-in storage. Corrosion resistant corten steel construction ready for any environment
- Indoor or outdoor operation
- ISO Certified Ocean ready
- Stackable and scalable infrastructure
- Built-in space for supporting equipment

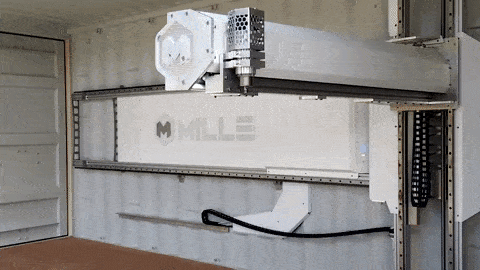

Heavy-Duty Design
Equipped with precision linear motion components for high-speed, low maintenance production throughout the entire build area.
- Expandable lengths
- Configurable to application
- Multi-step production
- High rigidity

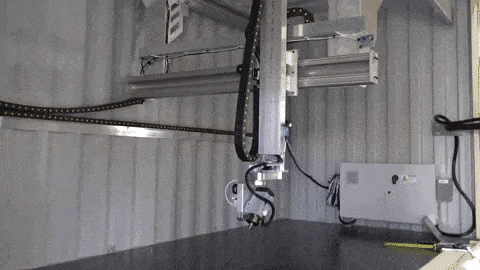

Modular Tool Options
Versatile machine platform equipped with tool-heads for additive, subtractive and hybrid manufacturing processes.
- Additive manufacturing
- Subtractive manufacturing
- Hybrid manufacturing
- Inspection equipment
Industrial Motion Control
User-friendly control system with remote support, Point-of-sale, and GPS tracking.
- 21” Industrial PC with touchscreen
- 6 Axis control
- User configurable M codes
- Onboard Point-of-sale

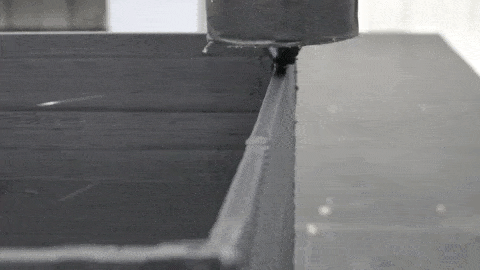

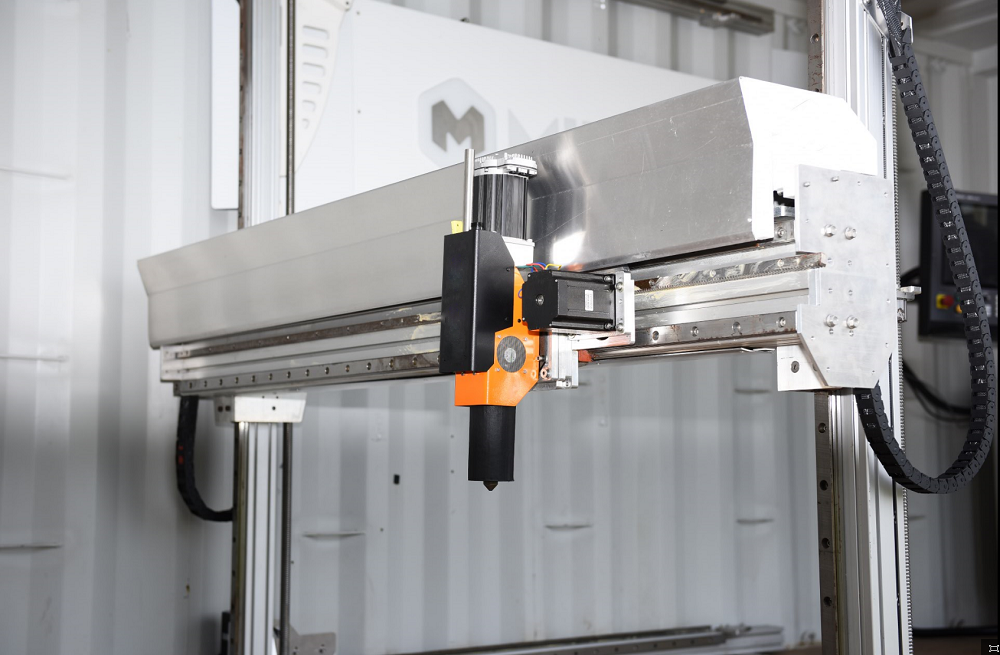

Pellet Extrusion System
For maximum output we use direct pellet extrusion. Our partners work directly with us to develop the optimal extrusions for Large scale 3D Printing.

Millebot's extruder offers precision and high print quality every time. Built for speed and flexibility, our massive pellet extruder is reliable under pressure to deliver fast, and detailed results.
